V-Ray Render Optimization

This tutorial attempts to cover the process of optimizing your V-Ray render settings to get the best possible render quality and fastest render time for a given scene.

There's often a lot of confusion surrounding V-Ray's sampling methods and what 'ideal' settings are. Many times you'll see artists adopt the 'Universal V-Ray Settings' of having the Image Sampler (Anti-Aliasing, or AA) Max Subdivs value set very high (like 50 or 100), and then simply lowering the noise threshold value until the render becomes clean enough - thinking that it's the best / fastest that V-Ray can do. But with a bit of understanding of how V-Ray works under the hood, you can achieve a higher quality result WITH faster render times - in some extreme cases ranging between 3x faster to 13x faster than the universal settings.

We'll first cover some of the underlying concepts behind how ray tracing and V-Ray's sampling works. Then we'll go over an example scene to demonstrate exactly how a render can be optimized to be faster and cleaner. Then we'll learn how to identify the different sources of noise a scene can have. And finally I'll provide a step-by-step procedure to optimize any scene to render with an ideal balance of quality and speed.

If you already know the underlying concepts and just want the technical step-by-step procedure, click here to skip right to it.

When a render begins, rays are first sent out from our camera and into the scene to gather information about the geometry that will be visible in the final image. These rays originating from the camera are called Primary Rays (also called Camera Rays or Eye Rays) and are controlled by V-Ray's Image Sampler (also known as Anti-Aliasing or AA).

Whenever a Primary Ray intersects with geometry in the scene, additional rays get sent out from that point of intersection into the rest of the scene to gather information about things like Lighting, Shadows, Global Illumination (GI), Reflection, Refraction, Sub-surface Scattering (SSS), etc. These additional rays are called Secondary Rays and are controlled by V-Ray's DMC Sampler.

From this point forward, we'll simply refer to 'Rays' as 'Samples' - because that's what the purpose of a Ray is - to take a Sample of a scene to gather information about what's going on in it. So basically Rays = Samples.

In order to accurately figure out what's going on in a scene, many Primary and Secondary Samples are needed to be taken. The more a scene gets sampled, the more information V-Ray is able to gather about the scene, and the higher quality the resulting render will be - which means less Noise in the render. This is because Noise is caused by a lack of information. Noise present in a render means that V-Ray wasn't able to gather enough information about what's going on in a scene. So in order to reduce noise, you need to provide V-Ray with more information - and to provide V-Ray with more information, you need to take more samples.

The amount of Primary Samples sent out into the scene is mainly controlled by the Min Subdivs, Max Subdivs, and Color Threshold settings of the Image Sampler. The amount of Secondary Samples sent out into the scene is mainly controlled by the Subdivs settings from individual Lights / Global Illumination / Materials in the scene, and the Noise Threshold setting of the DMC Sampler. (Noise Threshold is named Adaptive Threshold in V-Ray for Maya)

So to recap the important terms:

Ray =	Sample
Primary Samples =	The samples controlled by V-Ray's Image Sampler (also known as Anti-Aliasing or AA), which is specialized in sampling a scene's Geometry, Textures, Depth of Field, and Motion Blur.
Secondary Samples =	The samples controlled by V-Ray's DMC Sampler, which is specialized in sampling a scene's Lighting, Global Illumination (GI), Shadows, Material Reflection & Refraction, and Sub-Surface Scattering (SSS).
Noise =	A lack of information.
Subdivs =	The square root of the actual number of Samples. So Subdivs2 = Samples. For example: 8 Subdivs = 64 Samples. (82 = 64)

In this tutorial we'll learn how to best utilize these Primary and Secondary Samples to get the highest quality render (lowest amounts of Noise) in the fastest amount of time.

The SampleRate render element is one of the most important tools we'll be using to help us optimize our renders. It's V-Ray way of showing us exactly what the Image Sampler (AA) is doing at any given pixel. It does this by assigning a certain color for each pixel in the render according to how many Primary Samples (AA) are being taken at that pixel (which can be seen by viewing the SampleRate render element).

• A Blue-ish color means a low amount of the available Primary Samples (AA) was taken at the pixel.
• A Green-ish color means a medium amount of the available Primary Samples (AA) was taken at the pixel.
• A Red-ish color means a high amount of the available Primary Samples (AA) was taken at the pixel.

So for a scene with the Image Sampler (AA) set to 1min and 10max Subdivs (meaning 1min and 100max Primary Samples):

• A Blue pixel means that 1 Primary Sample was taken
• A Green pixel means that 50 Primary Samples were taken
• A Red pixel means that 100 Primary Samples were taken.

And for a scene with the Image Sampler (AA) set to 1min and 100max Subdivs (meaning 1min and 10000max Primary Samples):

• A Blue pixel means that 1 Primary Sample was taken
• A Green pixel means that 5000 Primary Samples were taken
• A Red pixel means that 10000 Primary Samples were taken.

For this tutorial, we'll be working with a simple test scene consisting of: A plane with a few spheres on top, various simple materials (including diffuse, glossy reflection, glossy refraction, and SSS), 2 areas lights, and a domelight with an HDRI. Global Illumination is enabled and set to Brute Force + Light Cache. This scene file can be downloaded HERE.

We'll begin with a baseline render with the following render settings:

• Image Sampler (AA) set to 1min & 8max Subdivs.
• Lights, GI, and Materials all set to the default of 8 Subdivs.
• Noise Threshold set to the default of 0.01.
• All other render settings are left at their defaults.

Now lets go over exactly what's happening in this baseline render. Through the render settings, you're telling V-Ray:

"I'm allowing you to use up to 64 (8 Subdivs) Primary Samples (AA) per pixel to figure out what's going on in this scene and reduce the noise as close as you can to my specified noise threshold... BUT for each of those Primary Samples you take, you're only allowed to take 1 additional Secondary Sample to figure out what's going on for each Light, GI, and Material."

At this point you may be asking:

"Wait, only 1 Secondary Sample for the Lights, GI, and Materials each? Shouldn't it be 64 Samples (8 Subdivs) as we've set them?"

Well it's important to note that even though the Lights, GI, and Materials are set to 64 Samples (8 Subdivs) each - V-Ray internally divides this value by the AA Max Samples value of your scene. So instead of the 64 Samples for the light and material each as you might expect, this gets divided by the AA Max of 64 Samples (8 Subdivs), which results in only 1 Secondary Sample being taken for the Lights, GI, and Materials each. (64 Secondary Samples / 64 Primary Samples = 1 Secondary Sample).

The reason V-Ray does this is because it's internal formulas are set up in a way that attempts to automatically balance it's two samplers. The thinking behind this is that with more Primary Samples being taken of your scene, a proportionally smaller amount of Secondary Samples are needed to figure out exactly what's happening in the scene (which we'll soon learn, this isn't always desirable). This balancing of the Image Sampler and the DMC Sampler can be a bit confusing at first, but the important thing to take away is this: Whenever you increase your Image Sampler (AA) settings, V-Ray tries to compensate by internally decreasing your DMC Sampler settings. Later on if you're interested in learning more about how V-Rays internal formulas work - you can check out the DMC Calculator I've coded - but for right now it's not necessary.

So lets get back to the rendering:

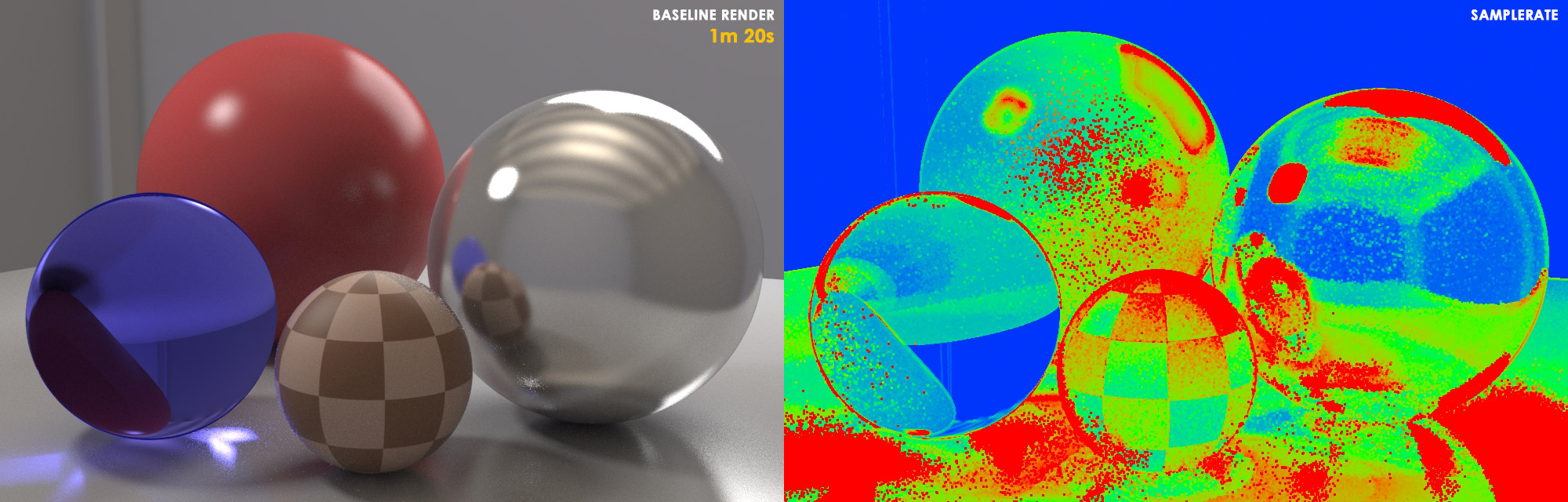

V-Ray finishes the render as best as it can manage, but warns you (by the many RED pixels in the SampleRate render element):

"I was NOT able to figure out what's going on in all of this scene according to the level of quality (noise threshold) you want it to be at! - A lot of the time I had to use up all of the 64 Primary Samples with 1 Secondary Sample per Light, GI, and Material you allowed me to use for each pixel, but it still didn't provide me with enough information in those areas."

If we take a look at the render - we'll notice that while the geometric detail (edges of objects) seem fairly clean and defined, there are indeed noisy areas of the image - specifically noticeable in the reflections and shadows. So we've got this noisy baseline render, and we have two options to reduce the noise to meet our desired level of quality (noise threshold):

Option #1 =	Increase AA Max Subdivs - Let V-Ray take more Primary Samples to figure out the scene - but again only 1 additional Secondary Sample for the Lights / GI / Materials each per Primary Sample.
Option #2 =	Increase Lights / GI / Materials Subdivs - Tell V-Ray to stay at the same amount of Primary Samples - but instead allow it take more Secondary Samples with each Primary Sample to better figure out the scene.

So lets first try what most people usually do to get a high quality (low noise) render - adopt the so-called 'Universal V-Ray Settings' and let V-Ray take as many Primary Samples (AA) as needed to eliminate the noise.

• We'll increase the Image Sampler (AA) to 1min & 100max Subdivs.
• We'll leave the Lights, GI, and Materials set to 8 Subdivs each.
• We'll reduce the Noise Threshold to 0.005 to tell V-Ray we really want a noise-free render.

Now lets go over exactly what's happening in this Option #1 render. Through the render settings, you're telling V-Ray:

"I'm allowing you to use up to 10000 (100 subdivs) Primary Samples (AA) per pixel to figure out what's going on in this scene and reduce the noise as close as you can to my specified noise threshold... BUT for each of those Primary Samples you take, you're only allowed to take 1 additional Secondary Sample to figure out what's going on with the Lights, GI, and Materials each."

Again, remember that even though the Lights, GI, and Materials are set to 64 Samples (8 Subdivs) each - V-Ray internally divides these values by the AA Max Samples value of your scene. So instead of 64 Samples, this gets divided by the AA Max of 10000 Samples (100 Subdivs), which results in the minimum of only 1 Secondary Sample being taken for the Lights, GI, and Materials each. (64 Secondary Samples / 10000 Primary Samples = 1 Secondary Sample).

V-Ray finishes the render as best as it can manage, and tells you (by the now mostly BLUE SampleRate render element):

"I was able to figure out all of what's going on in this scene to the level of quality (noise threshold) you want it to be at! - In fact, I was able to figure it out well before I had to use all 10000 Primary Samples with 1 Secondary Samples per Lights, GI, and Materials you allowed me for each pixel."

We take a look at the Option #1 render and see the noise has definitely been improved compared to the baseline render. The render time has increased by 11min 44s (9.8x longer) compared to the Baseline Render, but that's to be expected with a higher quality render, right? At this point, most people would think this is as good as it gets, and call the render FINISHED!

...But what happens if we were to try that Option #2 we discussed earlier? Instead of increasing the AA Max Subdivs, what happens if we instead opted to only increase the Lights / GI / Materials Subdivs? Well lets find out...

This time we'll try something a little different - we'll tell V-Ray to take same amount of Primary Samples that we originally did in the baseline render - but instead allow V-Ray to take more Secondary Samples with each Primary Sample to better figure out the scene.

• We'll leave the Image Sampler (AA) set to the original baseline render's settings of 1min & 8max Subdivs.
• We'll increase the Lights, GI, and Materials to 80 Subdivs each.
• We'll leave the Noise Threshold set to the original baseline render's default of 0.01

Once more, lets go over exactly what's happening in this Option #2 render. Through the render settings, you're telling V-Ray:

"I'm allowing you to use up to 64 (8 subdivs) Primary Samples (AA) per pixel to figure out what's going on in this scene and reduce the noise as close as you can to my specified noise threshold... AND for each of those Primary Samples you take, you're allowed to take up to 100 additional Secondary Samples to figure out what's going on with the Lights, GI, and Materials each."

Again, remember that even though the Lights, GI, and Materials are set to 6400 Samples (80 Subdivs) each - V-Ray automatically divides these values by the AA Max Samples value of your scene. So instead of 6400 Samples, this gets divided by the AA Max of 64 Samples (8 Subdivs), which results in only 100 Secondary Samples being taken for the Lights, GI, and Materials each. (6400 Secondary Samples / 64 Primary Samples = 100 Secondary Sample).

V-Ray finishes the render as best as it can manage, and tells you (through the SampleRate render element):

"I was able to figure out almost all of what's going on in this scene to the level of quality (noise threshold) you want it to be at! - In fact, most of the time I was able to figure it out well before I had to use all 64 Primary Samples per pixel! All those extra 100 Secondary Samples per Light, GI, and Material provided each Primary Sample with so much more information this time!"

We take a look at the Option #2 render and see the noise has definitely been improved compared to the baseline render. The render time has increased by 4m 38s (4.5x Longer) compared to the Baseline Render, but that's to be expected with a higher quality render.

But here's where things start to get interesting...

When we compare Option #2's render against Option #1's render, we can see that Option #2 gave us a cleaner render!

And look at that! - Option #2 finished 2.2x faster than Option #1! - 5m 58s for Option #2 versus 13m 04s for Option #1!

Why is this? Why did increasing the DMC Sampler settings (Lights / GI / Materials Subdivs) rather than increasing the Image Sampler (AA) settings result in a cleaner AND faster render for this scene? We even set Option #1 to have a lower noise threshold, yet it still turned out noisier than option #2! Well the answer lies in what we originally noticed about the Baseline render...

In our Baseline Render, we saw that while the edges of objects looked clean and defined, the noise seemed to reside primarily in the reflections and shadows. Well, if you remember what we learned earlier: Primary Samples (AA) specialize in figuring out the geometry, textures, depth of field, and motion blur in a scene. While Secondary Samples specialize in figuring out lighting, GI, shadows, materials, etc.

So in the case of fixing the noise in the Baseline render, the choice between Option #1 and Option #2 is actually a no-brainer! Why use a screwdriver to do a hammer's job? The Image Sampler (AA) had already done what it was designed to do - make the geometric detail (edges of objects) clean and defined. So instead of firing a bunch of additional Primary Samples (AA) at the scene to clean up noise - it's better to allocate those additional samples to the DMC Sampler (Lights / GI / Materials Subdivs) so it can properly do what it was designed to do - clean up the noise in the lighting, shadows, GI, reflections, and refractions. There's our answer!

And now can we begin to understand why the 'Universal V-Ray Settings' of 1min and 100max AA is generally not going to be the most efficient method to render a scene - in fact it never was meant to be the most efficient method! The Universal V-Ray Settings were designed to make V-Ray accessible and easy for users who don't care about render optimization or learning how V-Ray works under the hood. It's simply a method to put V-Ray on auto-pilot. It allows a user to control all render quality by adjusting only one setting - the noise threshold. If there's too much noise in a render, just lower the noise threshold, and V-Ray will keep firing Primary Samples (AA) at the scene until it eventually reaches the noise threshold - guaranteeing a nice looking render with minimal understanding of how V-Ray works. But that render is generally not going to be as clean or render as fast as if you take the time to understand how V-Ray works and balance the Image Sampler and DMC Sampler according to a scene's demands!

And just to really drive the point home - the Option #2 Render can still be optimized even further! Using some additional tricks listed in the procedures at the end of this tutorial, we can reduce it's render time from 5m 58s to 4m 53s with only a slight hit in noise amounts! For a final render speed increase of 2.7 times faster than the Option #1 Render!

Here's another example of optimization, this time with a more production oriented scene...

The optimized render (right) renders nearly 35% faster than the universal settings render (left) while reducing noise and improving render quality. Also note how the reflections have become more accurate - noticeable on the floor towards the end of the hallway.

The key to properly optimizing a render is to correctly identify which aspects of a scene are causing noise, and assigning the right sampler with enough samples to attack that noise at it's source. Some scenes will require more samples for the Image Sampler, while others (like the ones shown in the examples above) will require more samples for the DMC Sampler. As a general guideline:

Circumstances where the Image Sampler (AA) will require larger amounts of Primary Samples to eliminate noise:

• Fine geometric detail like Hair, Grass, Foliage, etc.
• Very fine texture detail like weaves, tiny bump map details, etc.
• Scenes with shallow Depth of Field or heavy Motion Blur.

Circumstances where the DMC Sampler will require larger amounts of Secondary Samples to eliminate noise:

• Large light sources that cast soft shadows.
• Materials with strong glossy Reflection or Refraction.
• Scenes with prominent Global Illumination - particularly indoor scenes.

Noise caused by the Image Sampler (AA) is luckily very easy to spot to the naked eye. It manifests itself in jagged or unclear object edges, undefined texture detail or effects like Moiré patterns, and grainy depth of field or motion blur.

Noise caused by the DMC Sampler can be a bit trickier to see exactly what's causing it. Luckily we have some handy tools at our disposal to help us figure it out - V-Ray's Render Elements: Lighting, Global Illumination, Specular, Reflection, and Refraction. By looking through these various render elements, you can quickly isolate and check the levels of noise caused by any of these individual aspects of your scene.

• In the examples in this tutorial, I kept the Lights / GI / Materials all at the same Subdivs values for the sake of simplicity and to make the concepts easy to understand. But it's important to remember that a properly optimized scene will have varying Subdiv values specifically tailored to the needs of each of these secondary aspects of the scene.
  For example: A material that's only 5% reflective probably wont need too many reflection samples to prevent noise from being visible in the final image, since it's final RGB value will be 95% dependent on the material's diffuse or refraction components. But if that same material was instead 95% reflective, it will need more reflection samples to prevent noise being visible in the final render, since the reflection will now be the main contributing factor of the material's final RGB values. The same goes for material glossiness - the more glossy a material's reflection or refraction is, the more samples it'll need to eliminate noise. The same applies for lights - the larger the light, the softer the shadows, and the more samples it'll need eliminate noise.
• Keep the DMC Sampler's Adaptive Amount setting below 1.0. There are many instances where setting this value at or near the maximum value of 1.0 can give really unpredictable results. The default value of 0.85 is a good place to leave it set.
• Experiment with unlinking the Image Sampler's Color Threshold value from the DMC Sampler's Noise Threshold by unchecking the 'Use DMC Sampler Threshold' checkbox under V-Ray's Image Sampler rollout. Then increase the Color Threshold value in small increments to help the Image Sampler not confuse noise caused by Lights / Shadows / GI / Materials for geometric or textural detail. Raising this value can potentially re-introduce noise in your image, so you can either raise your secondary Subdivs values higher to compensate, or just accept the slightly noiser but faster render times. It takes a bit of experimentation to see if it's worth it for your particular scene.
• Experiment with disabling the Image Filter of the Image Sampler if you don't have very small repeating detail patterns in your scene. V-Ray's Image Sampler (AA) already does a good job resolving and smoothing detail - so additional filtering sometimes isn't needed.
• Experiment with disabling the Filter Maps checkbox in V-Ray's Global Settings rollout, or lowering the filter/blur values of individual bitmaps used in your scene's materials to values like 0.1 or 0.2. Especially consider disabling the filtering of opacity maps for materials like leaves in trees. Disabling or reducing the filter/blur values of maps will have a definite render speed increase while making your maps appear sharper, but can also have the side effects of increased RAM usage, and possible flickering or scintillation of maps in animations.
• If using Light Cache for your GI's secondary bounces - enable 'Use for Glossy Rays' and 'Retrace Threshold' to help speed up the calculation of glossy materials.
• If using V-Ray 3.0 - try enabling the Embree raycaster via the 'Use Embree' checkbox in the V-Ray's System rollout. In many scenes the Embree raycaster can yield a great reduction in render time with no visible difference in quality.
• Reduce V-Ray's Bucket Size to something like 32x32 or 24x24 to avoid larger individual buckets getting stuck on a particularly difficult part of the render while other the buckets finish rendering and leave the image - causing your CPU to only use a fraction of it's available power to finish the last bit of the render. V-Ray 3.0 dynamically reduces Bucket Size towards the end of a render to help avoid this for you.
